Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Introduction

The cold rolling steel bar ribbed machine is to roll surface of steel round bar to form three ribs rebar.

Raw material is hot-rolled low carbon steel wire rod

Usage: This production line is mainly to make 6--12mm reinforcing steel bars with three-side ribs. The finished product is widely used in highway, road, city planning and construction works.

Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Advantages

1. This device adopts PLC touch screen numerical control system to make the operation easier.

2. The production line adopts the most advanced international frequency conversion and servo technology or independent frequency conversion control technology, and it effectively protects the power transmission system and equipment from damage. It maximizes the service life of the machine. It can save electricity 30-40%, the maximum line speed can reach 190 meters, increase production efficiency by more than 40%.

3. We adopt self-developed reducer as the national patented product, which is the fastest speed in China, simplifies the structure of the production line, and makes the equipment more reasonable and compact. (The speed reducer between the main reducer and the main rolling mill is omitted and the deceleration is reduced. Due to the long transmission distance of the machine and many problems connecting the flanges, it effectively improves the transmission efficiency by more than 30%, and improves the stability of the equipment by more than 60%. It effectively improves the production efficiency of the equipment.

Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Feature:

Gearbox Reducer, large torque, low noise, durable.

Advanced frequency inverter technology, can save 40-60% of electricity consumption.

The production speed can be up to 120 meters per minute, improve production efficiency.

Technology applied on the vibration aging process, eliminating the pre-stressing.

Process:

Raw material→cannon pay-off stand→Sheller→Dry Lubrication→ reduce wire diameter→ rolling mill machine for ribbing→Coiling

Technical Parameters of Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine

Application of Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine

Widely used in concrete structures such as floor slabs, floors, beams, and columns. The three-sided ribbed design significantly enhances the bond strength with concrete, improving overall load-bearing capacity and structural stability.

Suitable for precast slabs, precast beams, and lightweight structural components. Features high tensile strength, uniform rib shape, and stable stress performance, facilitating standardized and large-scale production.

Commonly used in residential buildings, commercial buildings, and various infrastructure projects. While meeting structural strength requirements, it effectively reduces steel consumption, balancing safety and economy.

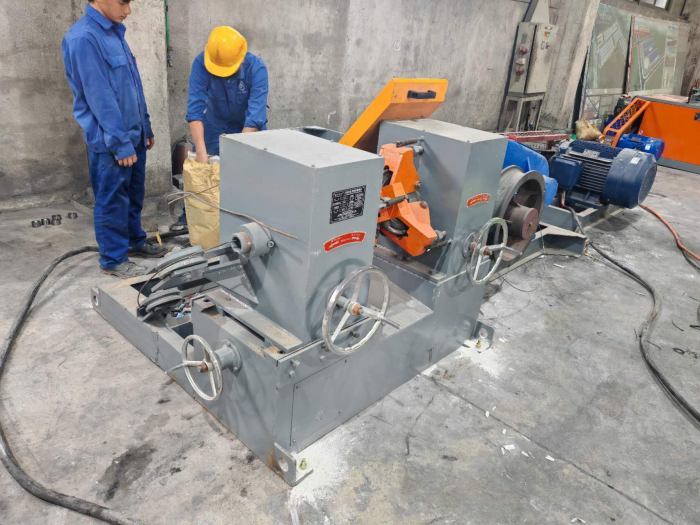

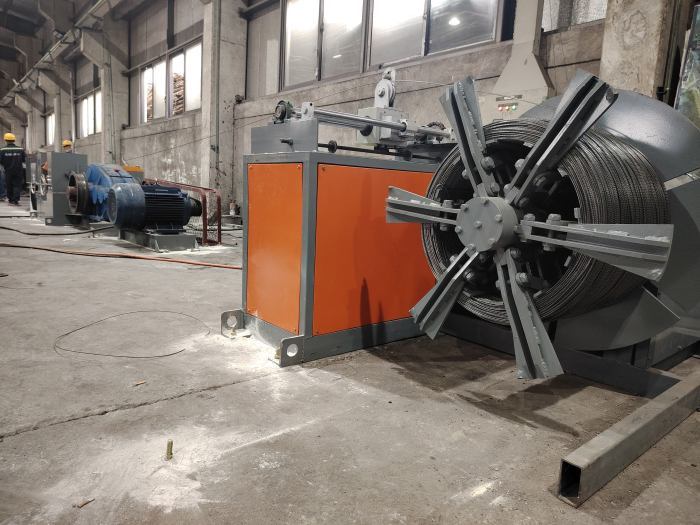

Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Photos
