Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine
商品の詳細
| 製品名 | BTO-22 BTO-25 BTO-30 自動かみそり有刺鉄線機 | 定格電圧 | 220V / 380V / 440V |
|---|---|---|---|
| 使用法 | カミソリワイヤーフェンス | 生産速度 | 220〜280m/h |
| アンコイラーのモーター | 1.5kw | パンチマシンのモーター | 4kw |
| カミソリコイラーのモーター | 1.5kw | パンチマシンの重量 | 3.9T |
| アンコイラーの重量 | 500kg | コイリングマシンの生産速度 | 150kg/h |
| ハイライト | 4kw razor barbed wire machine,BTO-30 barbed wire machine,5 strips razor wire machine |
||
製品の説明
Motor 4kw BTO-30 5 Strips Razor Barbed Wire Machine
Introduction of Razor Barbed Wire Machine
Razor barbed wire machine is specially used to manufacture razor barbed wire.It mainly consists of punching razor strip machine,coiling wire mesh and mould.the punching razor strip machine is used as punching the outside razor strip of razor wire.the coiling wire machine is used as coiling the wire into the razor strip to form the finished razor wire. The mould decide the razor length,width the space.
This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.
Features of Razor Barbed Wire Machine
1. Automatic decoiler holding max. 2 tonssteel sheet; its motormade of copper leads.
2. Step motor and converter on Yangli punch machine tofeed steel sheet. In this way, feeding speed is up to 100 times/minute.
3. Razor coiling machine adopts inverter to adjust working speed,more precise, long life.
4. PLC control to make operation easy andmachine run stable.
Advantages of Razor Barbed Wire Machine
1. High speed punching machine
2. Automatic lubricating system to save operation time and avoid some parts worn because of short of lubrication oil.
3. Step or servo motor feeding material to make material feeding more precise.
4. PLC control to make operation easy and machine run stable.
5. Some spare parts for free
Technical Parameters of Razor Barbed Wire Machine
| Model | DX-25T | DX-63T |
| Number of punch strips BTO-30 | 5 strips | 9 strips |
| Production speed | 220-280m/h | 220-280m/h |
| Motor power | 4.0kw | 5.5kw |
| Voltage | 220V,380V,415V,440V | 220V,380V,415V,440V |
| Machine weight | 3.1T | 3.9T |
| Machine dimension | 1800*1600*1980mm | 1800*1600*2650mm |
| Stepping motor feeding | Yes | Yes |
Technical Parameters of Coiling Machine
| Motor power | 3.0 kw |
| Weight | 400kg |
| Dimension | 1000*550*1000mm |
| Production capacity | 200kg/h |
| Rotate speed | 0-260r/min |
| Type of control | Inverter |
Applications of Razor Barbed Wire
Razor barbed wire is mainly used for safe isolation of facilities,communications stations,power transformer substation,and territorial prison,dump site,community protection, school,factories and farms.

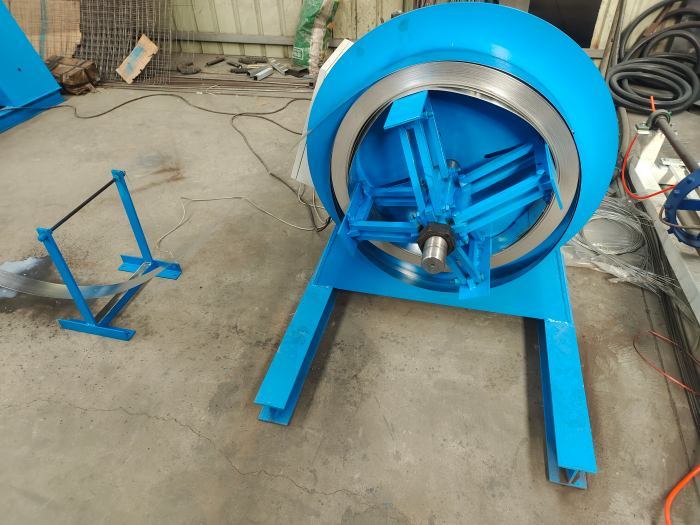

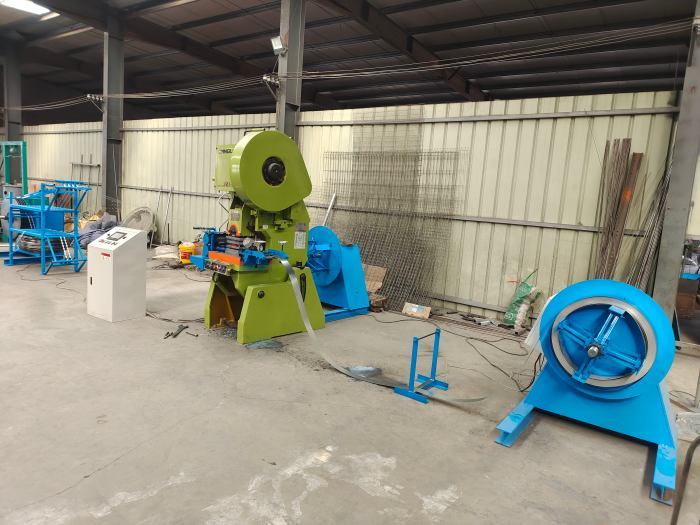

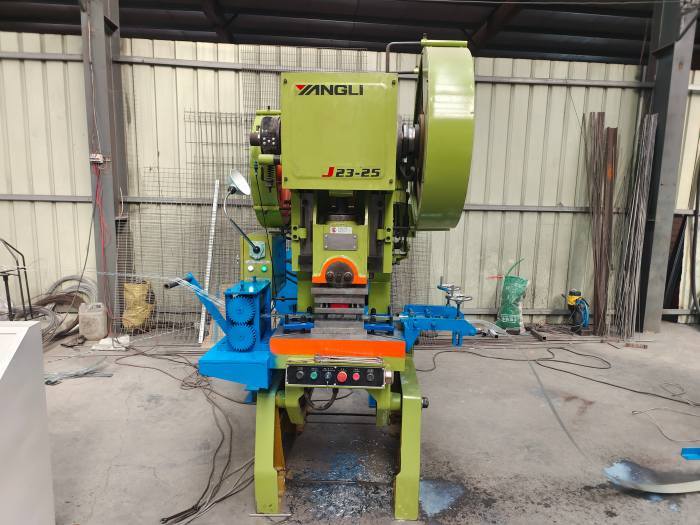

Photos of Razor Barbed Wire Machine
