Capacity 60 Pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine

Capacity 60 pcs Mesh Size 50*200mm Servo Motor 3.5kw Fence Mesh Welding Machine

Introduction of Fence Mesh Welding Machine

This fence mesh welding machine is developed and produced by the Chinese technical team and European engineers combined with the use experience of customers. The whole production line is very advanced and each system has been greatly improved.

Features of Fence Mesh Welding Machine

Automatic longitudinal wire feeding unit

1. Longitudinal wire storage device, 1T wires capacity.
2. Servo motor connect line wire feeder by synchronous belt, guarantee feeding accurately.
3. 21 seconds can feed 61 line wires.
4. Servo motor controls line wire pushing.

Automatic cross wire feeding unit

1. Cross wire storage device, 1T wires capacity.
2. Step motor controls cross wire falling.
3. Specially designed cross wire feeder, guarantee cross wire straight when cross wire falling.

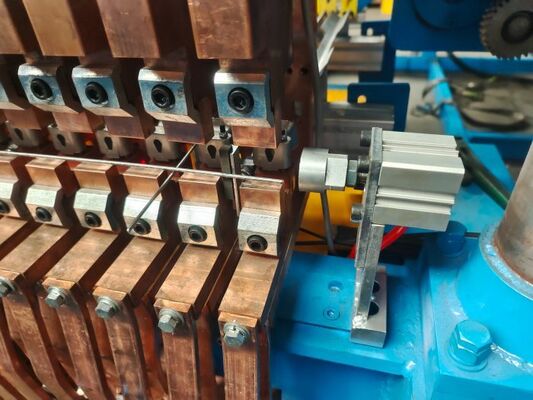

Main mesh welding machine

1. AirTAC (Taiwan China) brand air cylinder control welding.
2. Upper electrode base and lower electrode base are integrally cast in copper, water cooling type.
3. Welding electrode: 30*30*30mm, 6 sides use.
4. Cast type water cooling welding transformers.

Mesh pulling car

1. No.1 mesh pulling car control mesh pulling.
2. No.2 mesh pulling car control mesh feeding to automatic bending machine.
3. Servo motor connect mesh pulling car by synchronous belt, guarantee pulling accurately.

Automatic bending machine

CNC-controlled bending, adjustable bending angle and depth.
Deflection compensation worktable, reducing manual adjustment time and improving consistency.

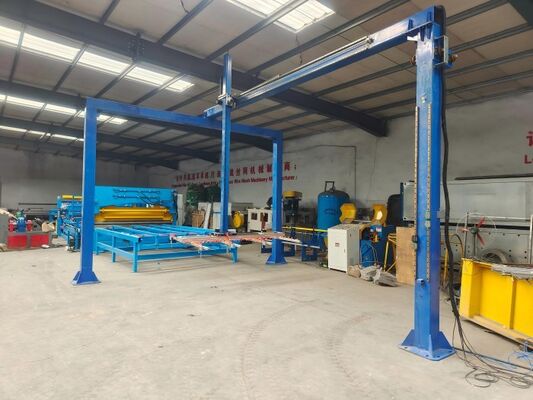

Mesh stacking unit

1. After finish welding, mesh stacking unit will catch and lift the mesh and stack on cart automatically.
2. Servo motor control the mesh lifting.
3. Servo motor control the mesh moving out.

Advantages of Fence Mesh Welding Machine

1. The mesh length (fence height) can be adjusted arbitrarily 75-2500 mm.
2. Vibration device is added to the cross wire feeding system to prevent wire winding.
3. The line wire and the cross wire are precise positioning, mesh panel is flat ,mesh hole is standard.
4. Cross wire spacing adjusted through the touch screen, different mesh sizes can set in the same mesh.
5. The upper and lower dies of the bending machine move at the same time to save time.
6. We can easily adjust the welding current when we need to weld different wire diameters.
7. The line wire feeding system has added a hopper, which can place 1 ton of wire.
8. We can set the output and stop the machine automatically after the mesh production finished.
9. Wire feeding,mesh welding, mesh bending, mesh stacking running together.High production efficiency.
10. Robot mesh stacking system can accurately and quickly place the mesh, saving labor cost.

Technical Parameters of Fence Mesh Welding Machine

Application of Fence Mesh

Fence mesh is mainly used in feeding chickens, ducks, geese, rabbits, zoo fence, machinery and equipment protection, highway guardrail, sports fence, the road green belt protection, storage, security and reinforcement materials, fencing of sports field, parks.

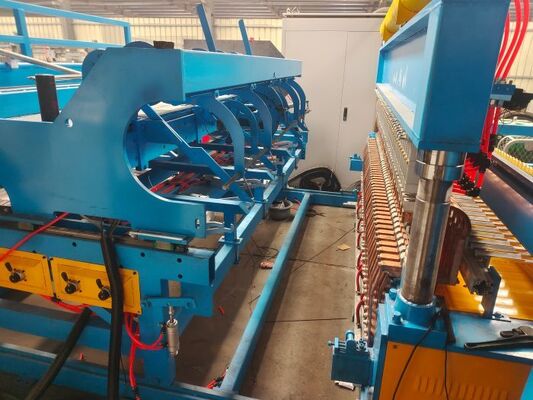

Photos of Fence Mesh Welding Machine
